Magnesium

  • We are the largest stocking distributor of wrought magnesium alloys in the world, supporting aerospace, defense, and high-performance manufacturing programs.
  • OMI is a leading supplier of aerospace magnesium alloys, supporting critical applications where lightweight, high-strength materials are required.
  • We supply off-the-shelf magnesium plate, magnesium sheet, magnesium round bar, and magnesium tooling plate in a full range of alloys and sizes, including AZ31B sheet and plate (AZ31B-H24 and AZ31B-O), AZ31B-F magnesium bar, and ZK60A-T5 and ZK60A-F flat and round bar.
  • Our inventory supports critical applications requiring certified, traceable magnesium materials, including AMS4375, AMS4377, and ASTM B107 magnesium bar specifications.
  • We offer cut-to-size processing, just-in-time delivery, and full support from raw material sourcing through finished part production. You provide the idea — we provide the product.
*** Sheet, Plate, Bar, Castings, Forgings, Extrusions ***
AZ31-TP Tooling Plate From .250″ to 14″ thickness AZ31B-H24 Sheet & Plate From .020″ to 3″ thickness
AZ31B-O Sheet & Plate From .020″ to 3″ thickness AZ31B-F Round Bar From .250″ to 14″ diameter
ZK60A-T5 Flat Bar Many sizes!! ZK60A-F Flat Bar Many sizes!!
ZK60A-T5 Round Bar From 1″ to 15″ diameter ZK60A-F Round Bar From 1″ to 15″ diameter
AZ61A-F Round Bar From 1″ to 3.125″ diameter Forgings, Castings, and Special Extruded Shapes
Magnesium Chips and Turnings
Additional magnesium alloys available include AZ80A, AZ91C, ZE41, EZ33, and other specialty magnesium alloys in cast, extruded, and machined forms.

Properties of Magnesium Alloy

Mechanical properties of magnesium alloys including AZ31B sheet and plate and ZK60A wrought magnesium

Where is Magnesium used?

  • Aerospace, defense and satellite applications where weight reduction is critical
  • Electronic components where shock absorbing qualities are crucial
  • Automotive/Motor sports applications where weight reduction and strength are required
  • Mechanical vibration shakers for test fixtures

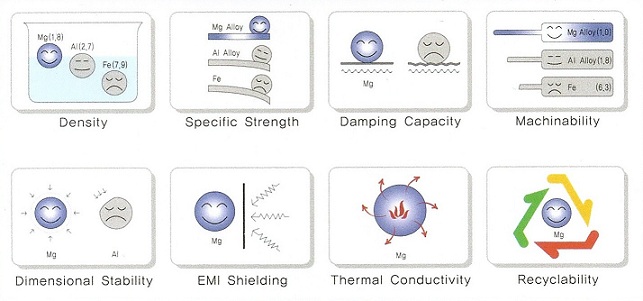

Why Magnesium?

  • Magnesium is the lightest industrial metal in the world
  • One third lighter than aluminum
  • Magnesium is as strong as aluminum
  • Magnesium is shock absorbing and dampens vibrations
  • Magnesium is very machinable
  • We supply AZ31, AZ61, AZ80, and ZK60 alloys in a range of tempers and product forms to meet ASTM B107 and AMS specifications.



More options are available, please call us for information



The following data tables provide detailed mechanical properties and specifications for AZ31B magnesium sheet and plate, ZK60A magnesium alloys, and other wrought magnesium materials used in aerospace and high-performance applications.

Thickness (Inches) Nominal Composition – (%) (Balance is Magnesium) Table Physical Properties (Room Temperature)
AZ31B
H24

0.016-0.249
0.250-0.374
0.375-0.500
0.501-1.000
1.001-2.000
2.001-3.000
OVER 3.000
3.0
1.0
.2
–
–
1.77
.064
1160
.18
9.2
H26

0.250-0.374
0.375-0.438
0.439-0.500
0.501-0.750
0.751-1.000
1.001-1.500
1.501-2.000
1.77
.064
1160
–
–

0

0.016-0.060
0.061-0.249
0.250-0.500
0.501-2.000
2.001-3.000
1.77
.064
1160
.18
9.2
Ultimate Tensile Strength (KSI) TYP/MIN Tensile Strength Yield (KSI) TYP/MIN Elongation in 2 Inches (%) Compressive Yield TYP/MIN Compressive Yield Strength (KSI) TYP/MIN TYP. Bearing Strength (KSI) ULT/YIELD
AZ31B
H24

42
40
39
38
37
37
–

39
38
37
36
34
34
29

32
29
27
24
23
21
–

29
26
24
22
20
18
14

15
17
19
14
16
–

6
8
8
8
8
8
8

26
23
19
16
14
12
–

24
20
16
13
10
9
8

29
28
27
26
26
26
–

77
72
70
68
66
66
–

47
45
40
37
35
33
–

73
–
–
–
–
–
–
H26

40
40
40
40
39
38
38

39
38
38
37
37
35
35

30
28
28
28
26
25
24

27
26
26
25
23
22
21

16
13
13
10
10
10
10

6
6
6
6
6
6
6

24
22
22
19
18
16
15

22
21
18
17
16
15
14

28
28
28
28
28
27
26

72
72
72
72
70
68
68

46
44
44
40
39
37
36

–
–
–
–
–
–
–

37
37
36
36
36

32
32
32
32
32

22
22
22
22
21

18
15
15
15
15

21
21
21
17
15

12
12
12
10
9

16
16
13
12
11

12
12
10
10
8

26
26
25
25
25

66
66
65
65
65

37
37
34
33
32

56
56
–
–
–

~ For conversion of ksi values into megapascals (MPa), multiply the ksi value by 6.89 ~
~ For conversion of MPa values into ksi values, multiply the MPa value by 0.14503 ~

Alloy Temper Thickness Ultimate Tensile Strength (KSI) TYP MIN Tensile Strength Yield (KSI) TYP MIN Elongation In 2 inches (%) TYP MIN Compressive Yield Strength (KSI) TYP MIN Shear Strength (KSI) TYP Type Bearing Strength (KSI) ULT YIELD Appox Brinnel Hardness
AZ31B H24 0.016-0.249 42 39 32 29 15 6 26 24 29 77 47 73
AZ31B H24 0.250-0.374 40 38 29 26 17 8 23 20 28 72 45 73
AZ31B H24 0.375-0.500 39 37 27 24 19 8 19 16 27 70 40 –
AZ31B H24 0.501-1.000 38 36 24 22 14 8 16 13 26 68 37 –
AZ31B H24 1.001-2.000 37 34 23 20 16 8 14 10 26 66 35 –
AZ31B H24 2.001-3.000 37 34 21 18 – 8 12 9 26 66 33 –
AZ31B H24 OVER 3.000 – 29 – 14 8 – 8 – – – –
AZ31B O 0.016-0.060 31 32 22 18 21 12 16 12 26 66 37 56
AZ31B O 0.061-0.249 31 32 22 15 21 12 16 12 26 66 37 56
AZ31B O 0.250-0.500 36 32 22 15 21 12 13 10 25 65 34 –
AZ31B O 0.501-2.000 36 32 22 15 17 10 12 10 25 65 33 –
AZ31B O 2.001-3.000 36 32 21 15 15 9 11 8 25 65 32 –
AZ31B F UNDER 0.250 IN. 38 35 28 21 14 7 15 – 19 56 34 49
AZ31B F 0.250-1.499 38 35 29 22 15 7 14 12 19 56 33 49
AZ31B F 1.500-2.499 38 34 28 22 14 7 14 12 19 56 33 49
AZ31B F 2.500-5.000 38 32 28 20 15 7 14 10 19 56 33 49
AZ61A F UNDER 0.250 IN. 46 38 33 21 17 8 – – 23 65 38 60
AZ61A F 0.250-2.499 45 40 33 24 16 9 19 14 22 68 40 60
AZ61A F 2.500-5.000 45 40 31 22 15 7 21 14 22 68 42 60
AZ80A F UNDER 0.250 IN. 49 43 36 28 12 9 – – 22 68 48 60
AZ80A F 0.250-1.499 49 43 36 28 11 8 – 17 22 68 48 60
AZ80A F 1.500-2.499 49 43 35 28 11 6 – 17 22 68 48 60
AZ80A F 2.500-5.000 48 42 36 27 9 4 – 17 22 68 48 60
AZ80A T5 UNDER 0.250 IN. 55 47 38 30 8 4 34 – 24 60 57 82
AZ80A T5 0.250-1.499 55 48 40 33 7 4 35 28 24 60 58 82
AZ80A T5 1.500-2.499 53 48 39 33 6 4 32 27 24 66 54 82
AZ80A T5 2.500-5.000 50 45 38 30 6 2 31 26 24 68 53 82
ZK60A F UNDER 2.000 IN. 49 43 38 31 14 5 33 27 24 76 56 75
ZK60A F 2.000-2.999 49 43 37 31 14 5 28 26 24 76 50 75
ZK60A F 3.000-4.999 49 43 36 31 14 5 27 25 24 76 49 75
ZK60A F 5.000-39.999 48 43 37 31 9 6 23 20 24 75 44 75
ZK60A T5 UNDER 2.000 IN. 53 45 44 36 11 4 36 30 26 79 59 82
ZK60A T5 2.000-2.999 52 45 43 36 12 4 31 28 26 78 53 82
ZK60A T5 3.000-4.999 51 45 42 36 14 4 30 25 25 77 52 82
ZK60A T5 5.000-9.999 – 45 – 34 – 6 – 23 – – – 82
ZK60A T5 10.000-24.999 – 45 – 34 – 6 – 22 – – – 82
ZK60A T5 25.000-39.999 – 45 – 31 – 6 – 20 – – – 82
2024 O 27 11 20 18 47
2024 T3 70 50 18 41 120
6061 O 18 8 25 12 30
6061 T4 35 21 22 24 65
6061 T4511 35 21 22 24 65
6061 T6 45 40 12 30 95
6061 T6511 45 40 12 30 95
6063 0 13 7 – 10 25
6063 T5 27 21 12 17 60
6063 T6 35 31 12 22 73
7075 O 33 15 15 22 60
7075 T6 83 73 73 48 150
7075 T6511 83 73 73 48 150
Composition, Physical & Mechanical Properties for Extruded Tube, Hollow and Semi-Hollow Shapes
Form
Alloy
Temper
Wall Thickness (Inches)
Nominal Composition – (%) (Balance is Magnesium)
Physical Properties (Room Temperature)
ALUMINUM
ZINC
MANGANESE
ZIRCONIUM
OTHER
SPECIFIC GRAVITY (68 °F)
DENSITY LB/CU. IN. (68 °F)
MELTING POINT (°F)
THERMAL CONDUCTIVITY (CGS UNITS) (68 ° F)
ELECTRICAL SENSITIVITY (MICROHM- CENTIMETERS) (68 ° F)
Extruded Tubes
AZCOML
F
0.028-0.250 (6″ MAX O.D.) 0.251-0.750 (6″ MAX O.D.)
2.8
0.9
.15
–
–
1.77
.064
1160
.18
9.2
AZ31B
F
0.028-0.250 (6″ MAX O.D.) 0.251-0.750 (6″ MAX O.D.)
3.0
1.0
.2
–
–
1.77
.064
1160
.18
9.2
AZ61A
F
0.028-0.250 (6″ MAX O.D.)
6.5
1.0
.15
–
–
1.8
.065
1145
.14
12.5
ZK60A
F
0.028-0.250 (3″ MAX O.D.)
–
5.5
–
5.5
–
1.83
.066
1175
.28
.29
ZK60A
T5
0.028-0.250 (3″ MAX O.D.) 0.094-1.188 (3″ MAX O.D.)
–
5.5
–
5.5
–
1.83
.066
1175
.29
5.7
Extruded Hollow and Semi-Hollow Shapes
AZCOML
F
ALL SIZES
2.8
0.9
.15
–
–
1.77
.064
1160
.18
9.2
AZ31B
F
ALL SIZES
3.0
1.0
.2
–
–
1.77
.064
1160
.18
9.2
AZ61A
F
ALL SIZES
6.5
1.0
.15
–
–
1.80
.065
1145
.14
12.5
ZK60A
F
ALL SIZES
–
5.5
–
5.5
–
1.83
.066
1175
.28
6.0
ZK60A
T5
ALL SIZES
–
5.5
–
5.5
–
1.83
.066
1175
.29
5.7
Room Temperature Mechanical Properties
Form
Alloy
Temper
Ultimate Tensile Strength (KSI)
Tensile Strength Yield (KSI)
Elongation in 2 Inches (%)
Compressive Yield Strength (KSI)
SHEAR STRENGTH (KSI
TYP. Bearing Strength (KSI) APPROX B
APPROX BRINNEL HARDNESS
TYP
MIN
TYP
MIN
TYP
MIN
TYP
MIN
TYP
ULT.
Yield
Extruded Tubes
AZCOML
F

35
35

31
31

23
23

15
15

16
12

8
4

11
11

9
9

–
–

–
–

–
–

46
46
AZ31B
F

36
36

32
32

24
24

16
16

16
12

8
4

12
12

10
10

–
–

–
–

–
–

46
46
AZ61A
F

41

36

24

16

14

7

16

11

–

–

–

60
ZK60A
F

47

40

35

28

13

5

25

20

–

–

–

75
ZK60A
T5

50
49

46
44

40
39

38
33

11
12

4
4

30
26

26
21

–
–

–
–

–
–

82
82
Extruded Hollow and Semi-Hollow Shapes
AZCOML
F
35
31
23
19
16
8
11
9
–
–
–
46
AZ31B
F
36
32
24
20
16
8
12
10
–
–
–
46
AZ61A
F
41
36
24
16
14
7
16
11
–
–
–
60
ZK60A
F
46
41
34
28
12
5
25
20
–
–
–
75
ZK60A
T5
50

46
50
40
38
11
4
29
26
–
–
–
82

Scope

This standard covers magnesium tooling plate of one grade and quality offered for sale for use in jigs, fixtures, gauges and other applications.

Composition

Magnesium tooling plate is made to AZ31 composition shown in the Chemical Composition of Magnesium Tooling Plate table below. Tooling plate can be supplied to MIL-T-38749 on inquiry.

Chemical Composition of Magnesium Tooling Plate

Alloy Mg Al Ca Mn Ih Zn Zr Cu max. Fe max. Ni max. Si max. Other imp. max.
AZ31 Bal. 2.5-3.5 0.04 max 0.20 min. – 0.7-1.3 – 0.05 0.005 0.005 0.05 0.3

Properties

Typical mechanical properties os AZ31 tooling plate are shown in the table below. Minimum properties are not guaranteed.

Thickness, inches TS, ksi TYS, ksi Elong. in 2″, % CYS, ksi
0.250-6.000 35 19 10 10

Standard Sizes

Thickness Size
.250, .375
48″x 96″
48″x 144″
–
.500, .625, .750, 1.000
48″x 96″
48″x 144″
60″x 144″
1.250, 1.500, 1.750
48″x 96″
48″x 144″
60″x 144″
2.000, 2.500, 3.000
48″x 96″
48″x 144″
60″x 144″
3.500
48″x 96″
–
–
4.000
49″x 84″
–
–
5.000
49″x 72″
–
–
6.000
49″x 60″
–
–

Special Inquiries: For thicknesses over 6 inches, widths over 60 inches, and non-standard lenghts.

Tolerances

Thickness – maximum variation in gauge within a plate ± 0.010 plate to plate variation
Specified thickness, inches
Tolerance ±, inches
0.250-0.750
0.010
0.751-1.250
0.017
1.251-2.000
0.025
2.001-3.000
0.050
3.001-3.250
0.065
3.251-3.500
0.080
3.701-4.000
0.110
4.001-5.000
0.125
5.001-6.000
0.135
Width and Length Tolerances
Specified thickness, inches
Specified width of length, inch
Up thru 10
Over 10 thru 48
Over 48 thru 72
Over 72
Tolerances, inch +
0.250-6.000
3/16
3/8
1/2
5/8
Flatness Tolerances
Specified thickness, inches
Deviation from flat*, inch
In any 1 foot
In any 6 feet
Guaranteed
Typical
Guaranteed
Typical
0.250-1.000
0.005
0.003
0.015
0.007
1.001
0.010
0.005
0.020
0.010

* Deviations from flat are measured from a straight edge placed on the surface of the plate.

Finish: The side suitable for tooling uses is stencilled. The opposite side is equal or superior to a mill finish.

Packing: Conforms to requirements of carrier through which shipment is made. Both domestic and export packing available.
